Dedman College Media Archive & Catalog

Overview

Dedman College needed an operating model for media that could carry an assignment from request through production, metadata preparation, quality control, secure archiving, and public discovery. I designed and implemented the archive and catalog as an interconnected workflow instead of a collection of folders and ad hoc handoffs.

The result combines a SharePoint catalog, linked project and assignment records, controlled metadata practices, Adobe Bridge quality control, a tiered Box archive, PhotoShelter delivery, and visual SOPs that make the system usable by people with different levels of technical experience.

Problem or research question

College media work spans events, portraits, editorial content, video, graphics, and external contributors. Without shared identifiers, metadata standards, ownership rules, or a clear archive lifecycle, assets become hard to find, difficult to reuse, and risky to publish or maintain.

Design question: How can a small media operation create a reliable, scalable content lifecycle that keeps production context, accessibility, asset governance, and public delivery connected?

Context and role

I created the archive’s information architecture and operational workflow for SMU Dedman College of Humanities and Sciences. My role covered the SharePoint catalog design, project and assignment schema, contributor records, naming standards, folder structure, metadata requirements, quality-control process, AI-assisted metadata workflow, archive delivery model, and documentation.

This case study uses sanitized evidence. It shows the system design and public-facing media examples while excluding credentials, internal links, records, and private operational details.

Approach and workflow

Structure the work. A project record groups a larger initiative; assignment records carry individual shoot, delivery, status, ownership, and archive information.
Standardize early. Naming rules, folder templates, job identifiers, contributor roles, and required metadata establish a dependable handoff before assets enter the archive.
Prepare and validate metadata. Reviewed intake records support structured IPTC/XMP entry, accessibility descriptions, controlled keywords, copyright information, and publication readiness.
Apply human quality control. Adobe Bridge is used to audit descriptive fields, accessibility text, keyword relevance, ratings, and metadata completeness before files advance.
Preserve and deliver deliberately. Files move through separate ingestion, archive-backup, and public-access areas. Public-facing assets are copied rather than removed from preservation storage.
Enable and improve. Visual SOPs, templates, and shared resources help contributors use the workflow consistently while supporting ongoing platform and process improvements.

SharePointSystem of record for projects, assignments, contributors, and production status

Metadata WizardHuman-reviewed metadata automation and optional AI-assisted drafts

Adobe BridgeMetadata entry, controlled vocabulary, rating, and final quality control

BoxIngestion, preservation backup, access separation, and version-aware archival storage

PhotoShelterPublic discovery, delivery, gallery organization, and search-facing metadata

Teams + SOPsCentralized guidance, training, updates, and cross-functional coordination

Tools and technologies

Governance, accessibility, and quality

The workflow treats multimedia management as a service, not a one-time upload. Project and assignment records capture phase, responsibilities, archive location, delivery status, and quality-control sign-off. Metadata standards distinguish assignment-level description from image-specific alt text, require approved keywords, connect assets to persistent identifiers, and preserve copyright and usage information.

Human-in-the-loop by design

AI can assist with draft descriptions, accessibility text, and image-specific keyword suggestions, but it does not silently become authoritative metadata. Structured intake is reviewed before automation, and final metadata is checked again in Adobe Bridge before publishing or archival completion.

Results and operational value

Created a centralized media catalog that connects production context to stored and publicly delivered assets.
Established repeatable operating procedures for project management, contributor administration, file naming, metadata entry, archive handling, and team access.
Separated preservation storage from public-access copies, supporting more intentional version control and delivery.
Made accessibility, controlled vocabulary, metadata quality, and copyright treatment explicit parts of the content lifecycle.
Provided training resources and templates that reduce dependence on individual memory and make the workflow easier to sustain.

System evidence

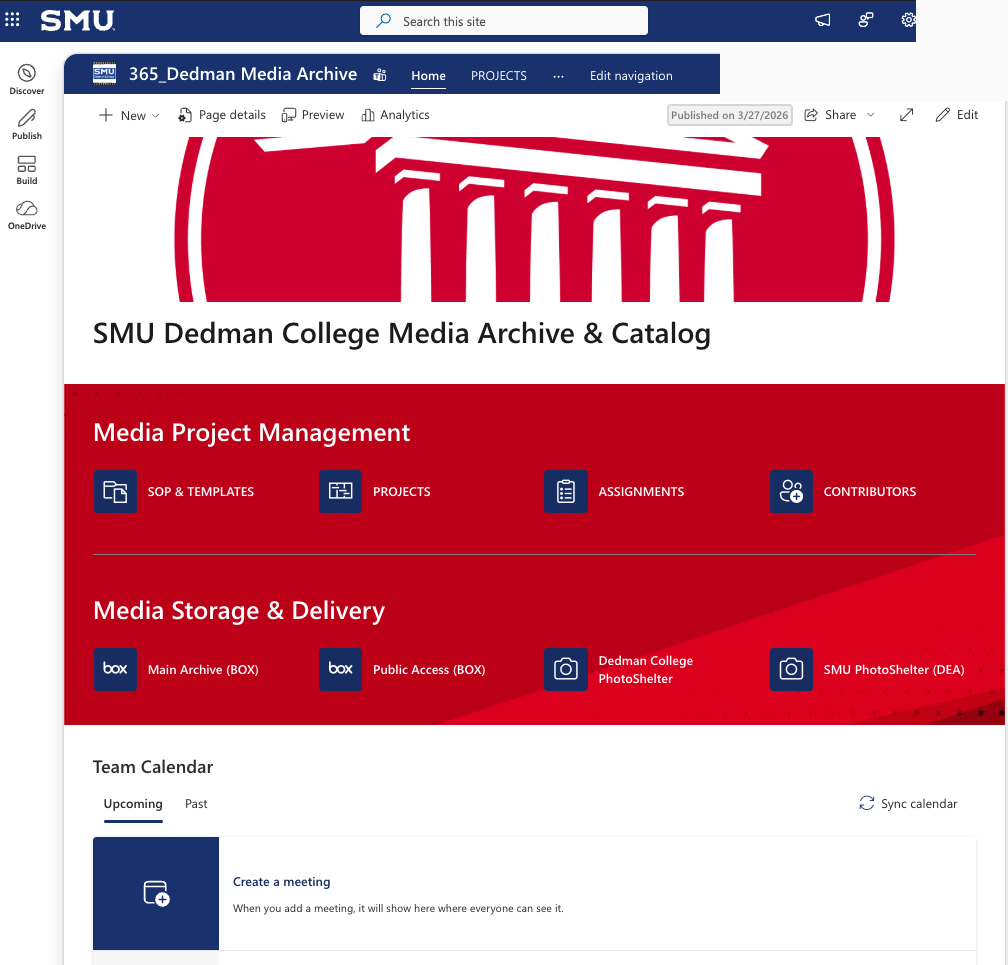

Sanitized archive homepage grouping project management, storage, and delivery tools — The catalog gives collaborators one starting point for project records, archive storage, public delivery, and support resources.

Archive lifecycle

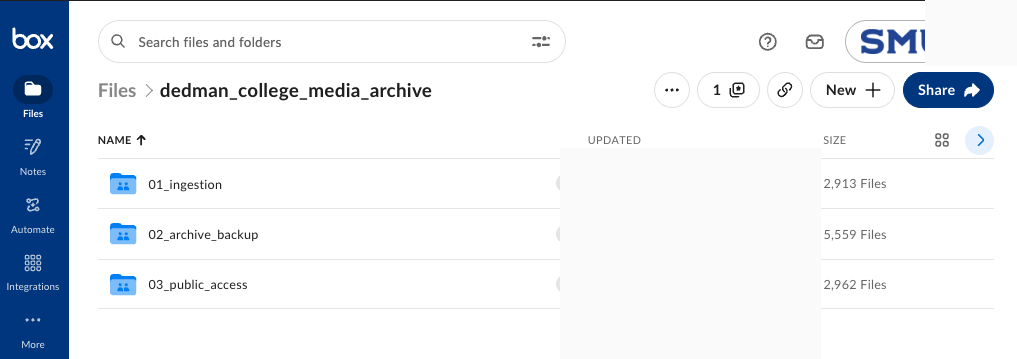

Archive root with separate ingestion, archive backup, and public access folders — Top-level lifecycle areas

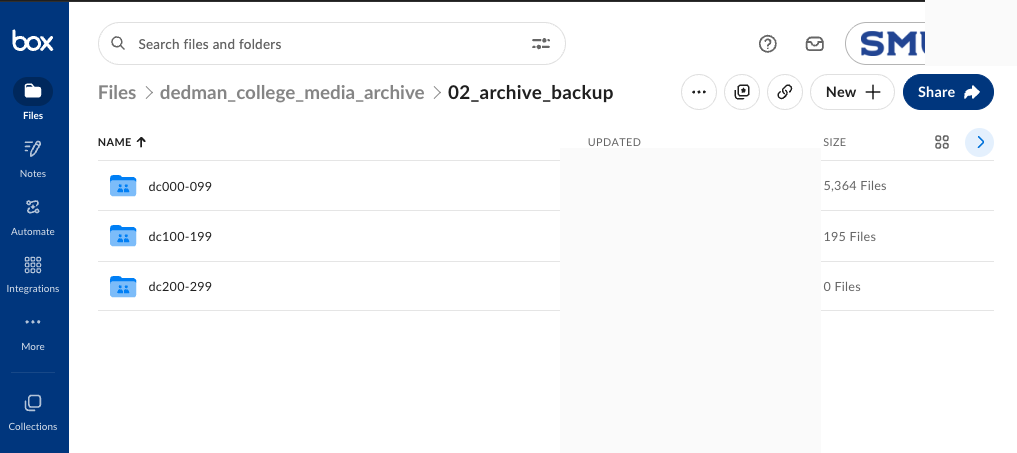

Archive backup folders organized by assignment-number range — Preservation backup structure

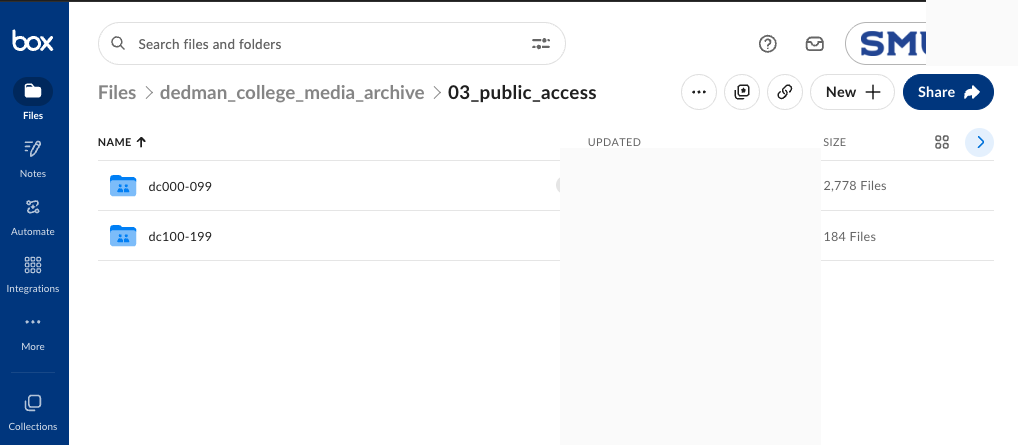

Public access folders organized by assignment-number range — Public-access copy structure

Metadata quality and public delivery

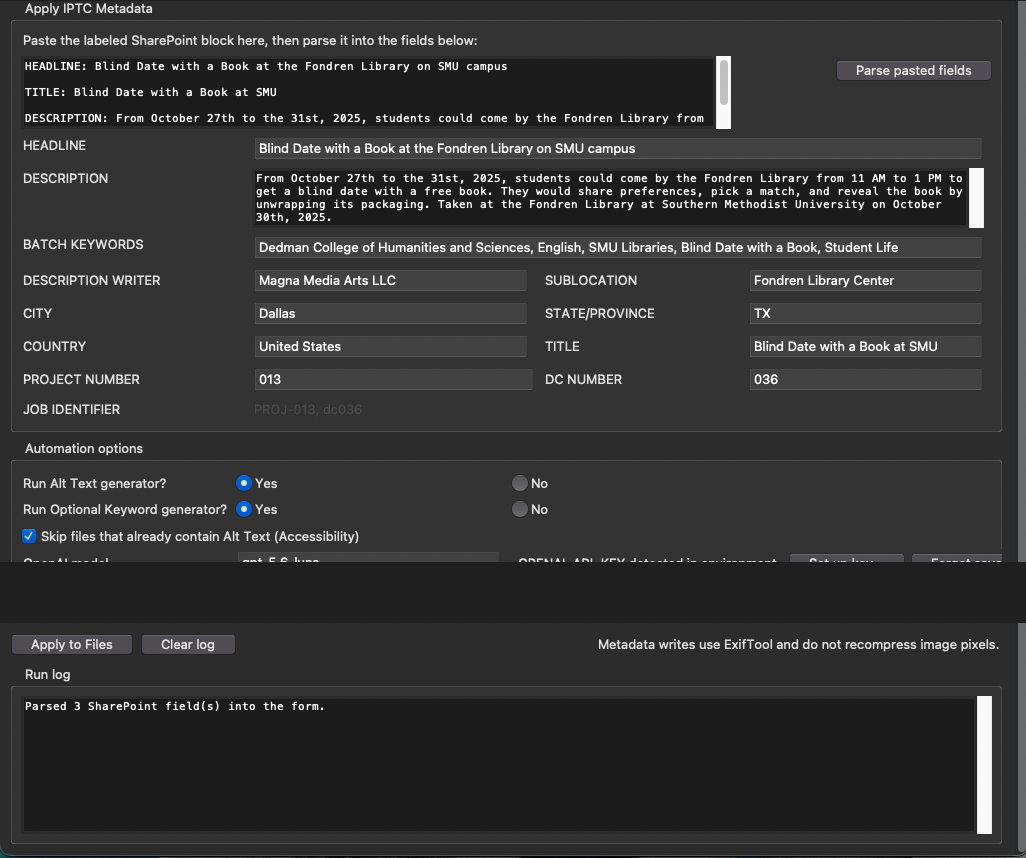

Sanitized Metadata Wizard interface with reviewed intake fields and accessibility options — Reviewed intake feeds structured automation rather than bypassing editorial judgment.

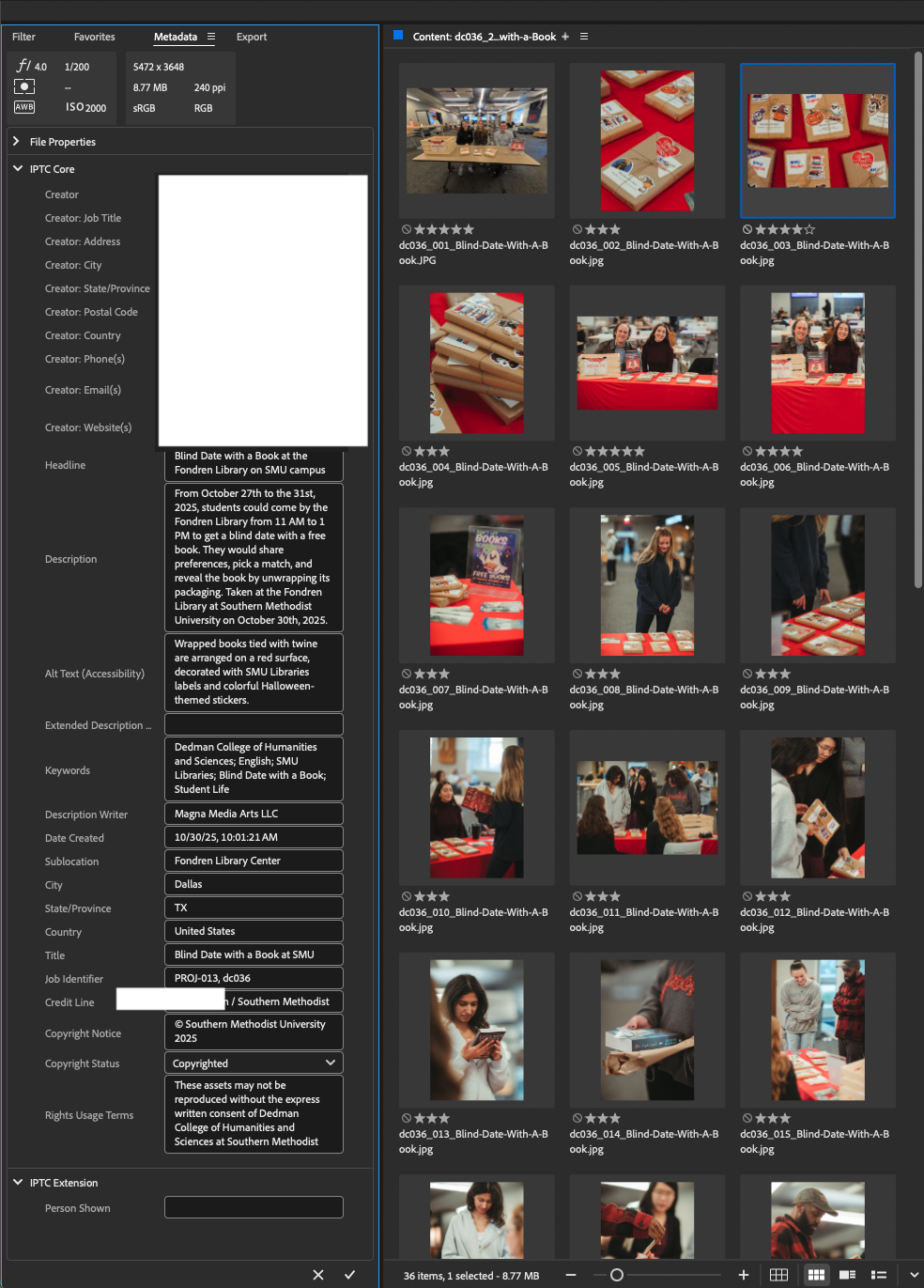

Adobe Bridge metadata workspace showing a redacted creator area and visible descriptive metadata fields — Final metadata quality control keeps descriptions, alt text, keywords, rights, and identifiers reviewable.

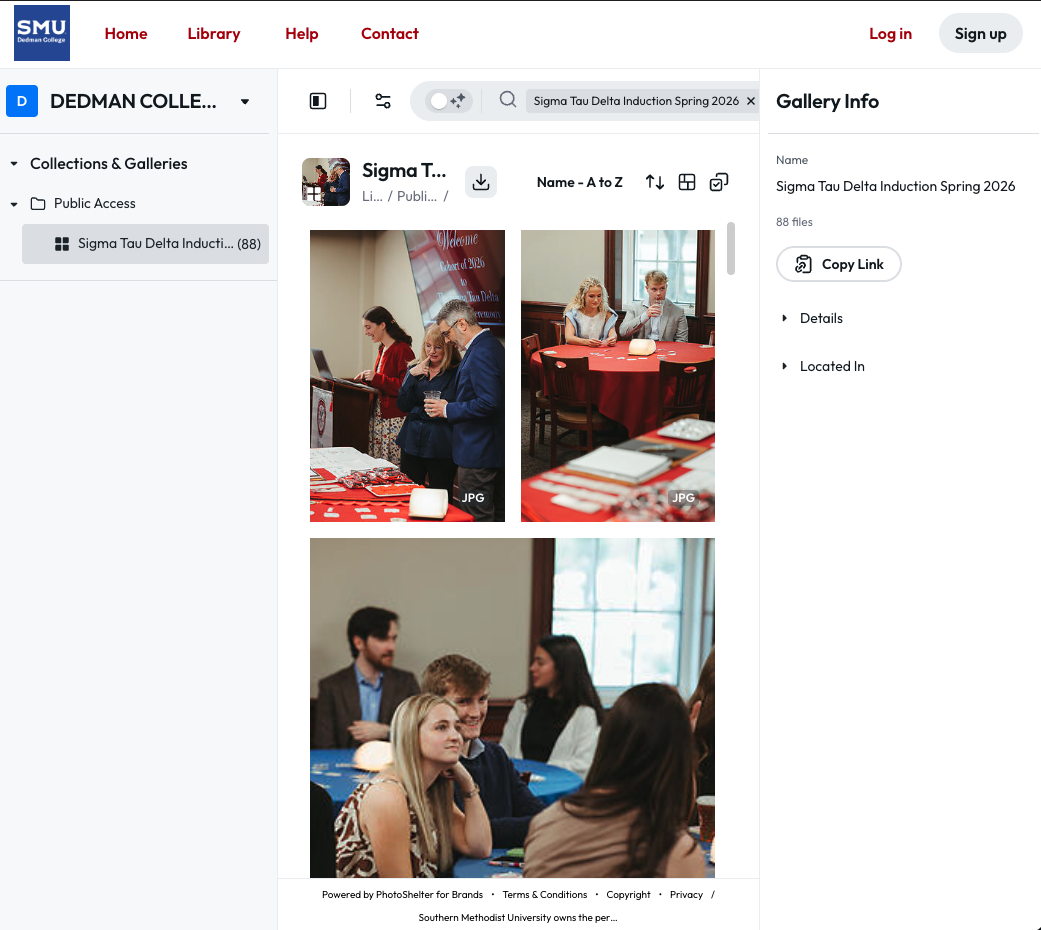

Public-facing PhotoShelter gallery displaying approved event photography — Approved assets become discoverable in a public-facing delivery environment.

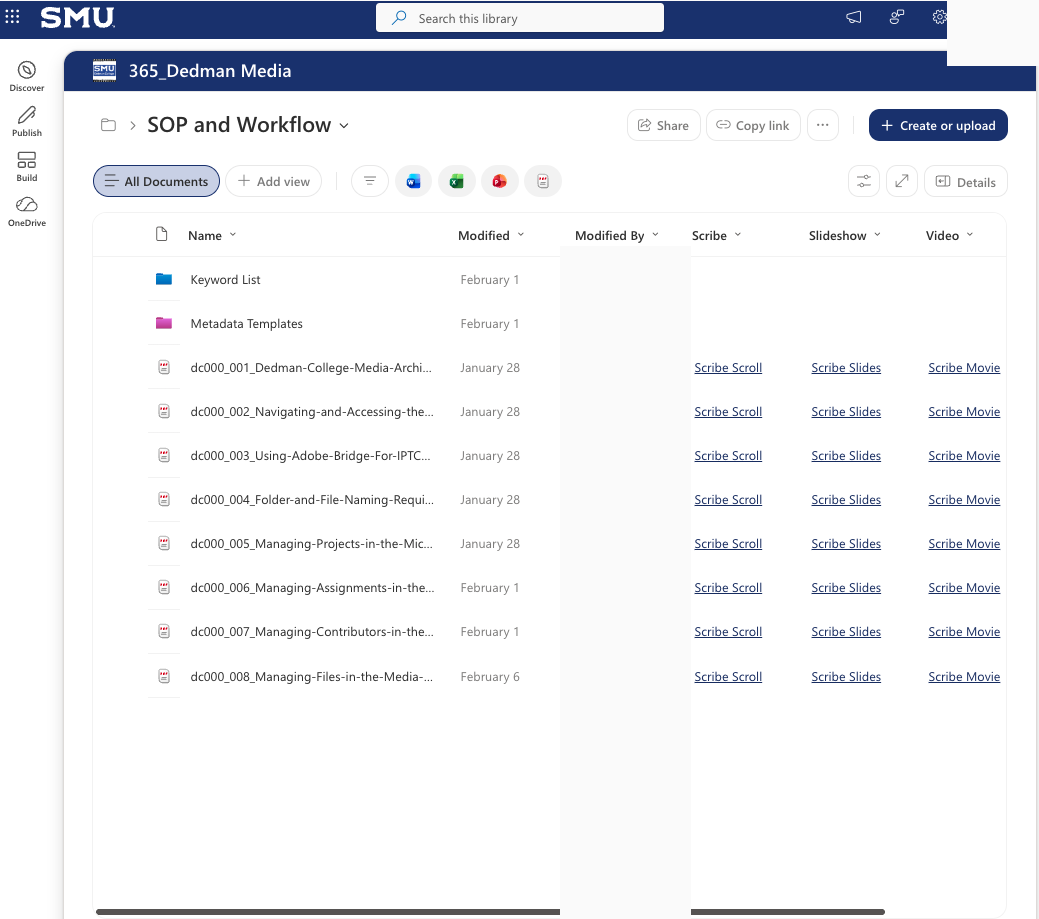

Sanitized SharePoint library listing media archive standard operating procedures and Scribe resources — SOPs and visual guides turn the system into a trainable, maintainable service.

Challenges and decisions

Cross-platform continuity: each platform has a distinct role, so identifiers and status fields create continuity without requiring one tool to do everything.
Discoverability versus privacy: the archive separates internal preservation from public-access copies and limits editing access to authorized participants.
AI reliability: assisted outputs remain drafts and exceptions remain visible for editorial review.
Adoption: the system is supported by templates, visual documentation, and role-based guidance rather than assuming every contributor is a metadata specialist.

Future improvements

Finish and maintain the PhotoShelter publishing guide as the delivery workflow evolves.
Introduce a recurring quality-audit cadence for metadata completeness, links, versions, and public-access accuracy.
Expand performance and user-feedback measures to identify where training, templates, or automation can reduce friction.
Continue improving the metadata workflow with comparison views, test coverage, and richer controlled-vocabulary review.
